Notification Database: Subscription Data Model

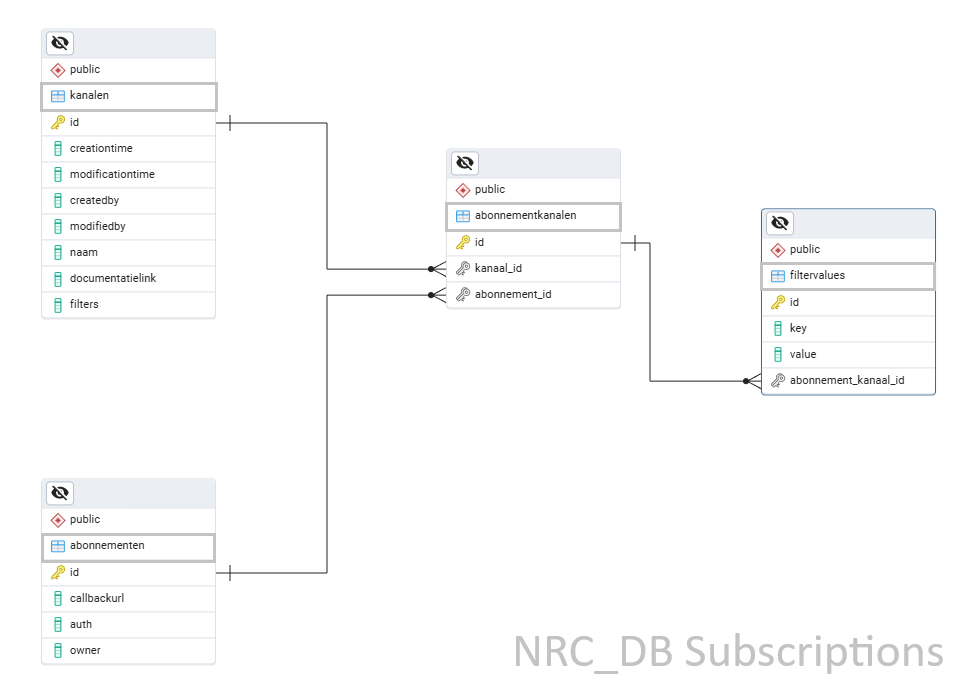

This document outlines the subscription data model within the NRC database.

Goal: To clarify the relationship between tables, specifically focusing on the abonnementkanalen table. While this table may appear to contain duplicate records, this design is intentional and necessary for the flexible functioning of notification filters.

---

1. Kanalen

OAS Resource: kanaal

The kanalen table represents the source of notifications (e.g., 'zaken' or 'besluiten' in the ZRC).

Column	Description
id	Primary Key. Unique identifier for the kanaal.
naam	The name of the channel (e.g., zaken, besluiten).
documentatielink	URL pointing to the documentation for this specific channel.
filters	A list of available attributes that can be used to filter subscriptions for this channel.

---

2. Abonnementen

OAS Resource: abonnement

The abonnementen table stores the actual subscriptions for ZGW notifications received via POST requests.

Column	Description
id	Primary Key. Unique identifier for the subscription.
callbackurl	The full webhook URL of the application where the notification must be sent.
auth	The bearer token required by the webhook receiver for authorization.
owner	The RSIN of the organization granting access to the application.

---

3. Abonnementkanalen

OAS Element: kanalen array within abonnement.

This table establishes an N:M (Many-to-Many) relationship between abonnementen and kanalen.

Key Concept: The Primary Key (id) of this table is referenced by the filtervalues table. This architecture allows a single subscription to link to the same kanaal multiple times. While this looks like duplicate data, it allows different sets of filtervalues to be applied to the same channel within one subscription.

Column	Description
id	Primary Key. Referenced by filtervalues.
abonnement_id	Foreign Key. Points to the parent subscription in abonnementen.
kanaal_id	Foreign Key. Points to the source channel in kanalen.

---

4. Filtervalues

OAS Element: filters element within abonnement.

To prevent message flooding, subscriptions often restrict which notifications they receive. The filtervalues table stores these restrictions.

Column	Description
id	Primary Key.
abonnement_kanaal_id	Foreign Key. Links to the abonnementkanalen table.
key	The filter name. Valid values are listed in kanalen.filters. Special values include: • #resource: The resource triggering the event. • #actie: The event type (e.g., create, destroy).
value	The specific value to match against.

Example Usage

If you want to filter for a specific domain, the definition for the zaken channel might look like this:

• Key: domein
• Value: VTH

Result: The notification is delivered only if the 'zaak' belongs to a 'zaaktype' within the 'VTH' domain.

---

Logic: Combining Filters

The data model supports complex filtering logic by combining multiple filtervalues and multiple abonnementkanalen.

The Logic Rule

1. Inside a single abonnementkanaal: Filters are combined with AND.
2. Between different abonnementkanalen (for the same subscription): Logic is combined with OR.

Scenario: "Create OR Delete"

A client application wants to receive notifications from the zaken channel only when a zaakinformatieobject is created OR deleted.

Abonnementkanalen ID: 1 (The "Create" Condition)

• Filter A: key='#resource', value='zaakinformatieobject'
• Filter B: key='#actie', value='create'
• Logic: Resource is object AND action is create.

Abonnementkanalen ID: 2 (The "Delete" Condition)

• Filter A: key='#resource', value='zaakinformatieobject'
• Filter B: key='#actie', value='destroy'
• Logic: Resource is object AND action is destroy.

Final Result: If (Object created) OR (Object destroyed) then Send Notification.
